Key Takeaways
- Epoxy is a two-part thermosetting polymer — it chemically bonds to concrete, not just coats it. This is what separates it from paint.
- Surface preparation (shot blasting or diamond grinding) accounts for 80% of the outcome. Inadequate prep is the primary cause of delamination.

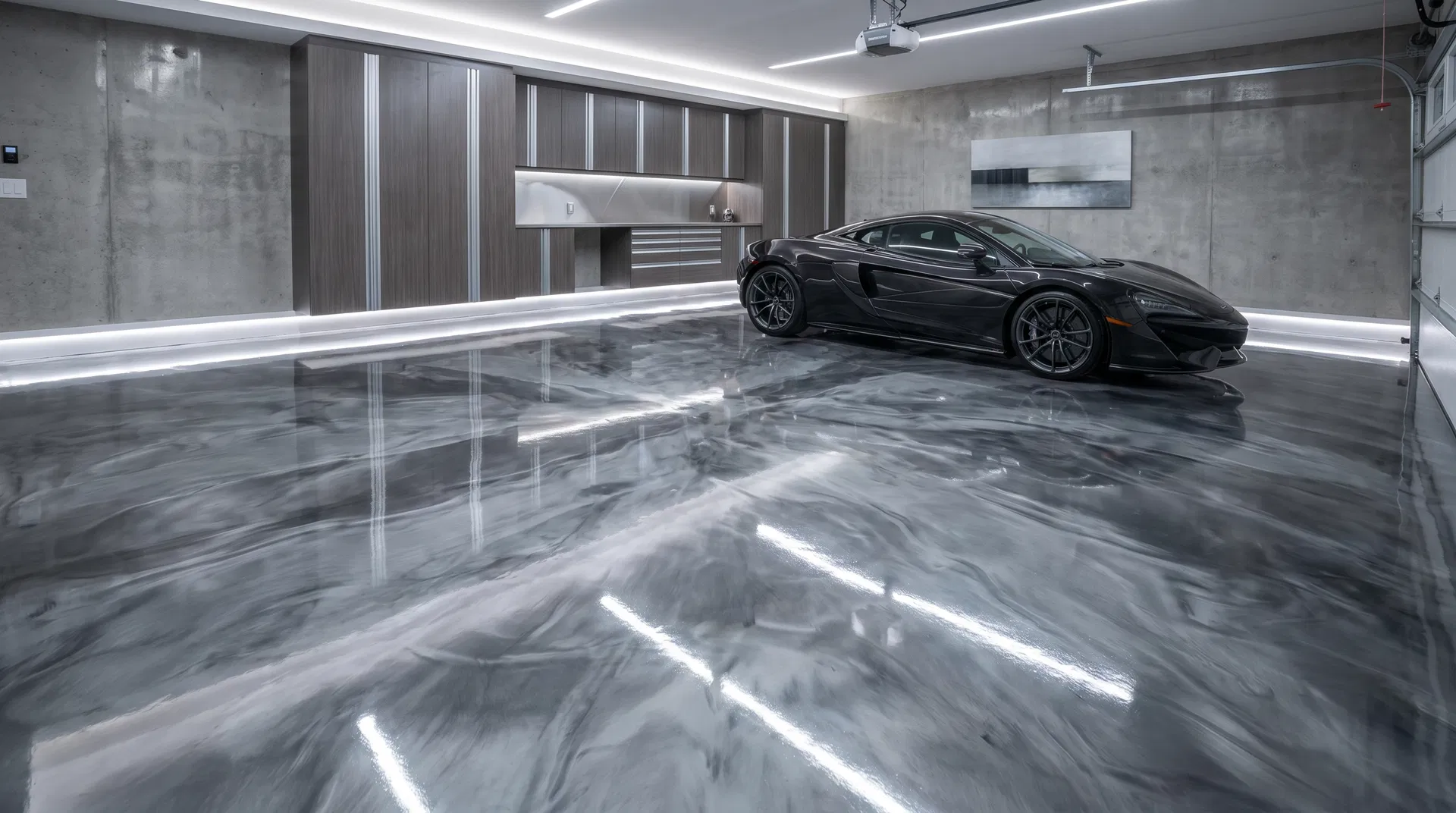

- Metallic epoxy systems create the high-gloss, swirling aesthetic seen in luxury garages — each floor is unique and cannot be replicated exactly.
- Moisture vapor transmission (MVT) testing is essential before installation — concrete with high moisture content will cause epoxy to bubble and fail.
- A properly installed epoxy floor in a residential garage should last 15–20 years with minimal maintenance.
The term "epoxy floor" is used loosely to describe everything from a $50 DIY kit from a hardware store to a multi-layer, professionally engineered coating system that costs $8–$15 per square foot and lasts two decades. Understanding the difference requires a basic grasp of the chemistry involved and the installation standards that determine whether a floor performs or fails.
What Is an Engineered Epoxy Surface?
An engineered epoxy surface is a multi-layer flooring system applied to a properly prepared concrete substrate. Unlike paint, which sits on top of the concrete and can peel, epoxy penetrates the surface and forms a chemical bond with the concrete matrix. The result is a surface that is structurally integrated with the floor rather than simply adhered to it.
A complete system typically consists of three layers: a primer coat that penetrates and seals the concrete, a base coat that provides the primary color and structural thickness, and a topcoat that provides UV resistance, chemical resistance, and the desired surface finish (matte, satin, or high-gloss). Decorative elements — metallic pigments, vinyl flake, quartz aggregate — are broadcast into the base coat before it cures.
The Chemistry of Epoxy Flooring
Epoxy is a thermosetting polymer formed by the reaction of two components: a resin (Part A) and a hardener (Part B). When mixed in the correct ratio, these components undergo an exothermic chemical reaction that cross-links the polymer chains, creating a rigid, three-dimensional network. This cross-linking is what gives cured epoxy its exceptional hardness, chemical resistance, and adhesion strength.
The key distinction from paint is irreversibility. Once epoxy cures, it cannot be re-melted or re-dissolved. This is why surface preparation is so critical — any contamination (oil, moisture, dust) between the epoxy and the concrete will prevent the chemical bond from forming, creating a weak interface that will eventually delaminate under thermal cycling and mechanical stress.
Epoxy System Types
Not all epoxy systems are created equal. The primary categories used in residential applications are:
- 100% Solids Epoxy: No solvents, no water carrier — the entire product becomes part of the cured film. This is the professional standard for residential garages. Film thickness is typically 10–20 mils per coat. Higher cost, but maximum durability.
- Water-Based Epoxy: Lower VOCs, easier application, but significantly lower film thickness and durability. Suitable for light-duty applications but not recommended for vehicle traffic.
- Metallic Epoxy: A 100% solids system with metallic pigment (aluminum, mica, or pearlescent) broadcast into a clear or tinted base. The pigment creates the distinctive swirling, three-dimensional appearance. Each floor is unique because the metallic particles move during application.
- Polyaspartic Topcoat: Often used as the final layer over an epoxy base. Polyaspartic cures faster than epoxy, has superior UV stability (important for floors with natural light exposure), and provides exceptional abrasion resistance. A hybrid epoxy/polyaspartic system is the current professional standard for residential garages.
Surface Preparation: The Critical Variable
Surface preparation is where most DIY and budget installations fail. Concrete must be mechanically profiled — meaning the surface must be physically abraded to create a profile that the epoxy can penetrate and bond to. The two professional methods are:
- Shot Blasting: Steel shot is propelled at high velocity against the concrete surface, removing the laitance (weak surface layer) and creating a uniform profile. This is the preferred method for large areas and produces a consistent surface profile (CSP 3–4) ideal for 100% solids epoxy.
- Diamond Grinding: Industrial diamond tooling grinds the surface to the required profile. More precise than shot blasting and better suited for areas near walls or in tight spaces.
Acid etching — the method used in most DIY kits — is insufficient for professional-grade systems. It creates an inconsistent profile and does not remove the laitance layer effectively. Floors prepared with acid etching have a significantly higher delamination rate within the first three years.
Moisture vapor transmission (MVT) testing must be performed before installation. Concrete is porous, and moisture vapor migrating upward through the slab creates hydrostatic pressure that will push the epoxy off the surface from below. A calcium chloride test or relative humidity probe test should be performed, and the results should be within the epoxy manufacturer's specified tolerance.
Residential Applications in Westchester County
The most common residential application in Westchester is the garage floor. A properly installed epoxy system transforms a utilitarian concrete slab into a surface that is easier to clean, more resistant to oil and chemical spills, and significantly more attractive. For homeowners who use their garage as an extension of the home — a workshop, a fitness space, or a showcase for vehicles — the aesthetic upgrade is substantial.
Westchester's climate presents one specific challenge: thermal cycling. Garage floors in this region experience significant temperature swings between winter and summer, and the freeze-thaw cycle can stress the bond between the epoxy and the concrete if the system was not properly specified. A 100% solids epoxy with a polyaspartic topcoat is the recommended system for Westchester garages because the polyaspartic layer provides the flexibility needed to accommodate thermal movement without cracking.
Maintenance and Longevity
A properly installed epoxy floor requires minimal maintenance. Routine cleaning consists of sweeping and occasional mopping with a pH-neutral cleaner. Avoid harsh chemicals, abrasive scrubbing pads, and steam cleaners, which can damage the topcoat over time.
The topcoat will show wear in high-traffic areas (tire paths, entry points) before the rest of the floor. A professional recoat of the topcoat layer — without stripping the base coat — can restore the appearance and extend the system's life by 5–10 years. This is significantly less expensive than a full reinstallation.
Expected service life for a professionally installed 100% solids epoxy system with polyaspartic topcoat in a residential garage: 15–20 years with normal use.
Epoxy vs. Alternatives
| System | Cost/sq ft | Durability | Best For |
|---|---|---|---|
| 100% Solids Epoxy + Polyaspartic | $8–$15 | 15–20 years | Residential garages, showrooms |
| Water-Based Epoxy | $3–$6 | 3–5 years | Light-duty, low-traffic areas |
| DIY Epoxy Paint Kit | $1–$2 | 1–3 years | Temporary solution only |
| Polished Concrete | $6–$12 | 20+ years | Commercial, modern aesthetic |
Ready for an Engineered Epoxy Floor?
Castle Driveway installs 100% solids epoxy systems with polyaspartic topcoats for residential garages in Westchester County and South Florida. Every installation includes professional shot blasting and MVT testing. Request a free estimate today.
