Forensic Pavement Analysis: Reading Failure Signals

Every asphalt driveway tells a story. The specific patterns of cracking, deformation, and deterioration that develop over time are not random — they are diagnostic signals that point to specific underlying causes. Learning to read these signals is the difference between treating symptoms and solving problems.

Why Failure Analysis Matters

The most common mistake in driveway repair is applying a surface treatment to a problem that originates below the surface. Sealcoating over alligator cracking, for example, temporarily improves the appearance but does nothing to address the sub-base failure that caused the cracking. Within one or two freeze-thaw cycles, the surface will look worse than before.

Proper diagnosis before treatment is not just good practice — it is the difference between a repair that lasts and money wasted. A contractor who takes the time to identify the root cause of each failure pattern is providing a fundamentally different service than one who applies the same treatment to every driveway.

Oxidation and Surface Cracking

What it looks like: The surface has turned gray or brown. Fine, shallow cracks appear in a random pattern across the surface. The asphalt feels brittle underfoot.

Root cause: UV radiation and oxygen break down the asphalt binder over time, causing it to harden and lose flexibility. This is a normal aging process that accelerates without sealcoating.

Correct treatment: Sealcoating arrests further oxidation and restores flexibility to the surface layer. If cracks are wider than 1/8", they should be filled before sealing. This is a surface-level problem with a surface-level solution.

Alligator Cracking

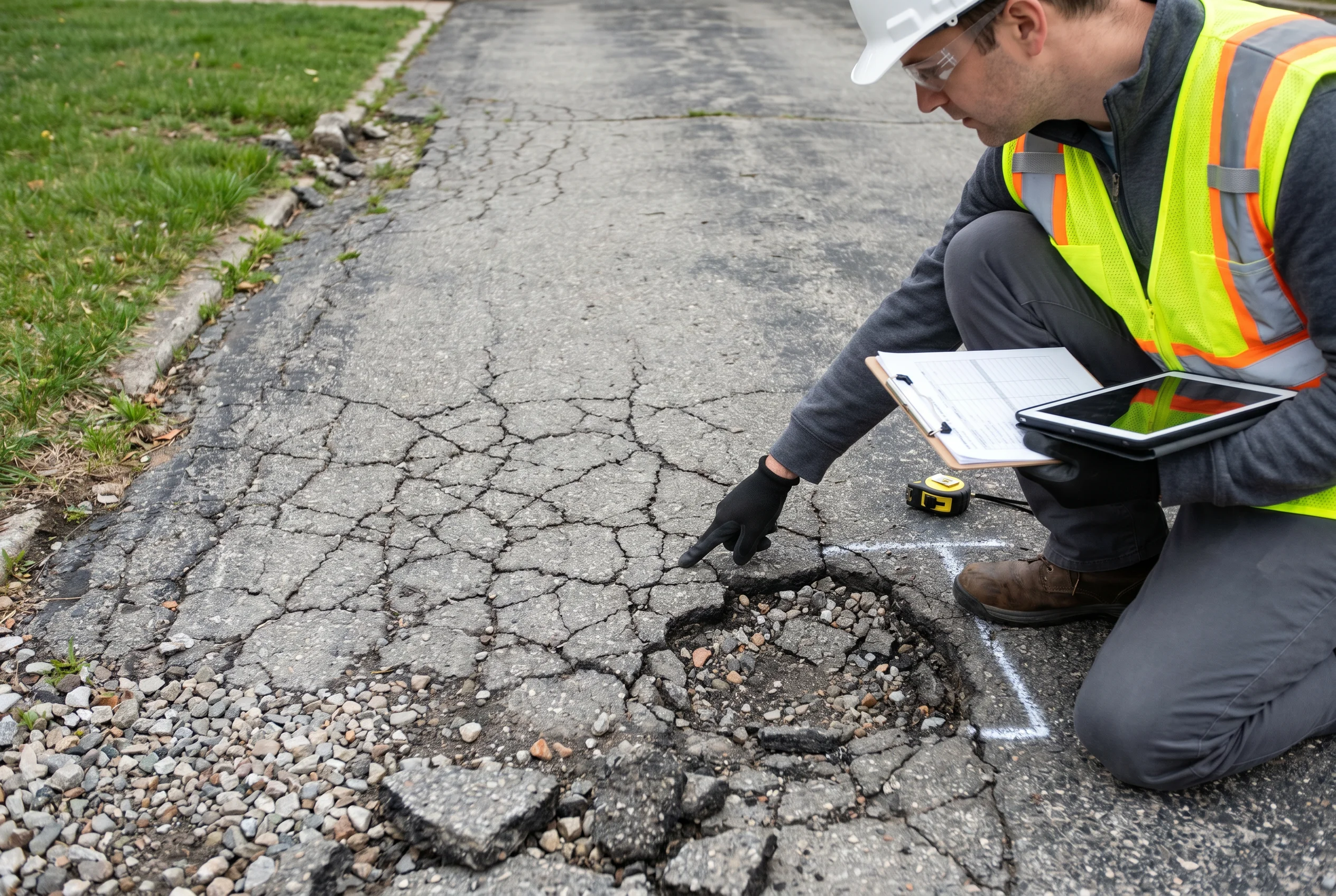

What it looks like: A pattern of interconnected cracks forming irregular polygons, resembling the skin of an alligator. The affected area may feel soft or springy underfoot.

Root cause: Sub-base failure. Water has infiltrated the asphalt through unsealed cracks, saturated the base material, and caused it to lose load-bearing capacity. The asphalt surface is now flexing under vehicle weight in ways it was not designed to handle.

Correct treatment: Remove and replace the affected area, including the failed base material. Repair the drainage issue that allowed water infiltration. Surface treatments will not solve this problem — the base must be rebuilt. This is the most expensive failure mode to correct, which is why crack sealing and sealcoating are so valuable as preventive measures.

Edge Failure

What it looks like: The edges of the driveway are crumbling, breaking off in chunks, or have developed a ragged, irregular border. The deterioration is concentrated within 6–12 inches of the edge.

Root cause: Lack of lateral support. Asphalt requires containment on its edges to resist the outward pressure of vehicle loads. Without a curb, Belgian block, or concrete border, the edge is unsupported and will progressively fail under traffic.

Correct treatment: Install Belgian block or concrete curbing to provide permanent edge support. Repair the damaged edge material. This is one of the most preventable failure modes — proper edging at installation or shortly after eliminates the problem entirely.

Rutting and Deformation

What it looks like: Longitudinal depressions in the wheel paths. The surface has deformed permanently under vehicle loads, creating channels that collect water.

Root cause: Either a soft or unstable sub-base, or asphalt that was mixed with too high an asphalt content (making it too soft in hot weather). In Westchester, rutting is most common in areas that receive concentrated loads — near the garage door, at the street entrance, or under heavy vehicles.

Correct treatment: Mill out the rutted area and replace with properly mixed asphalt. If the sub-base is soft, it must be stabilized or replaced. Rutting that is left untreated will worsen progressively as water collects in the channels and accelerates sub-base deterioration.

Potholes

What it looks like: Bowl-shaped holes in the surface, typically 2–12 inches in diameter and 1–4 inches deep. Often appear after winter or spring thaw.

Root cause: Water infiltration through cracks, followed by freeze-thaw cycling. The water freezes, expands, and pushes the asphalt upward. When it thaws, the asphalt collapses into the void left by the ice. Vehicle traffic then breaks away the weakened material.

Correct treatment: Remove all loose material, clean the hole, apply tack coat, and fill with hot-mix asphalt compacted to match the surrounding surface. Cold-patch products are a temporary fix only. Address the crack that allowed water infiltration to prevent recurrence.

Raveling

What it looks like: The surface aggregate (small stones) is loosening and separating from the asphalt binder. The surface feels rough and gravelly. Loose stones accumulate on the surface and edges.

Root cause: Loss of binder due to oxidation, or poor adhesion between aggregate and binder at the time of installation. Raveling is common on older driveways that have not been sealcoated, and on driveways where the asphalt mix was not properly designed or applied.

Correct treatment: If raveling is minor, sealcoating can stabilize the surface and slow further deterioration. If raveling is advanced, the affected area should be milled and replaced. Sealcoating over severe raveling will not restore structural integrity.

Diagnosis Reference Table
